Smarter In-Wall Outlet

Kasa Smart Wi-Fi Power Outlet, 2-Sockets  |  KP200

Kasa Smart Wi-Fi Power Outlet, 2-Sockets

Smarter In-Wall Outlet

Everything you enjoy about smart plugs, now in a discreet in-wall outlet.

Features

  • Smart In-wall Outlets

    Kasa Smart’s in-wall outlet lets you control 2 plugged in devices from anywhere at the same time or individually. All the features and benefits of a Kasa Smart plug multiplied.

  • Control From Anywhere

    Turn your in-wall outlet on or off, set schedules or scenes from anywhere with your smartphone using the Kasa Smart app.

  • Voice Control

    Use simple voice commands with your in-wall smart outlet and any Alexa, Google Assistant or Microsoft Cortana.

  • Away Mode

    Set your outlet to turn connected devices on and off randomly throughout the day to make it appear you’re home even while you’re away.

  • Grouping

    Use Grouping to combine your smart outlet with other Kasa Smart devices for seamless control with one single tap on your smartphone.

  • Schedules

    Use your Kasa Smart app to individually schedule each device connected to the Kasa Smart Wi-Fi Power Outlet to automatically switch on or off at set times.

  • Easy Install

    No need to understand complex wiring, just follow the step-by-step wiring process in the Kasa Smart app for a guided installation.*

    *Any modification may void warranty.

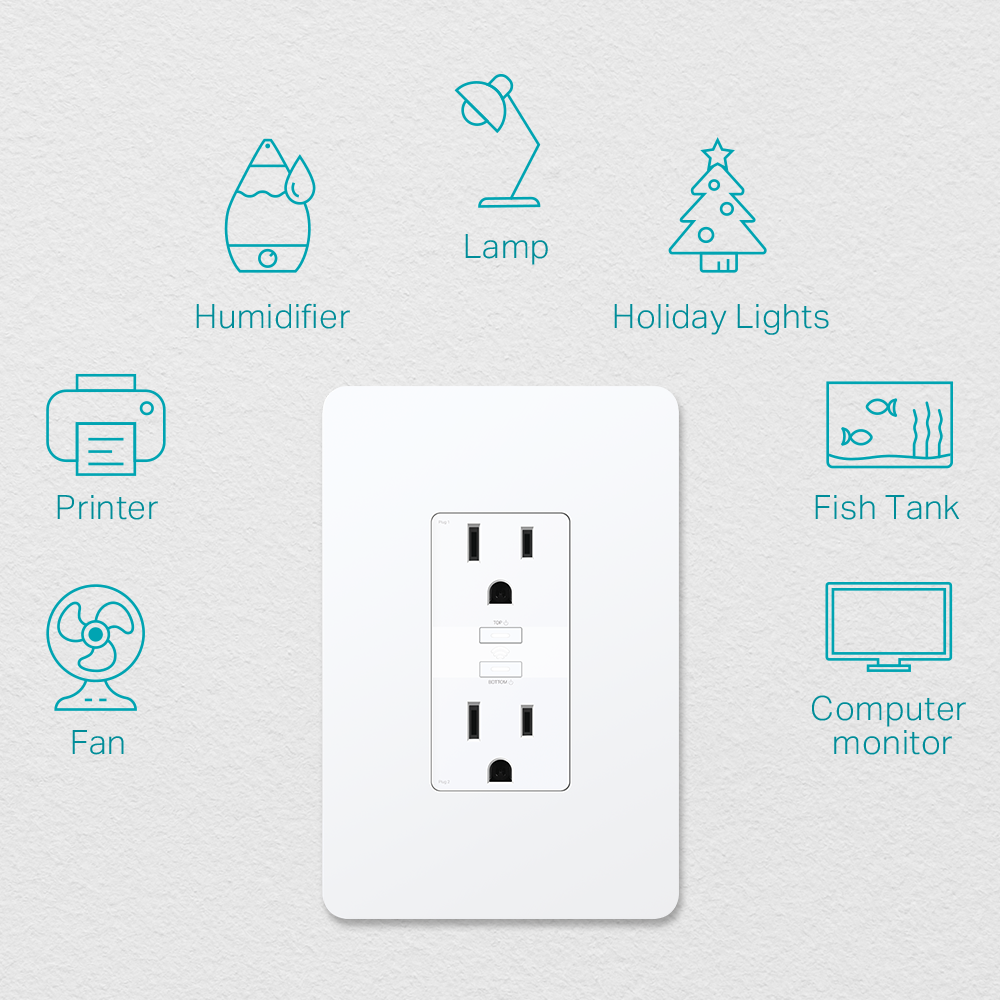

Smart In-Wall Outlets

Kasa Smart’s in-wall outlet lets you control 2 plugged in devices from anywhere at the same time or individually. All the features and benefits of a Kasa Smart plug multiplied.

Install Tutorial

Before you begin installation of your Kasa Smart Wi-Fi Power Outlet, we recommend watching this tutorial. Installation and a neutral wire are required for this product. A step-by-step guide can also be found in the Kasa Smart app.

Voice Control

Use simple voice commands with your in-wall smart outlet and any Alexa, Google Assistant or Microsoft Cortana. You can give each outlet a unique name and use them separately.

A Single Tap Is All It Takes

Use the Grouping feature on the Kasa Smart app to combine your devices together for unified control with one single tap on your smartphone. Combine your living room bulbs, plugs and light switches together for an easier way to turn them on when you get home.

Technical Specifications +

Communication
Wi-fi Protocol

IEEE 802.11b/g/n

Wi-fi Frequency

2.4GHz

Wi-fi Requirements

Secured 2.4GHz home Wi-Fi network

Kasa Smart App System Requirement

iOS 10 or Android 4.4 or higher


Hardware
Product Dimensions (w x D x H)

1.73 x 3.33 x 5.11 in (43.9 x 84.7 x 129.7 mm)

Packaging Dimensions (w x D x H)

4.65 x 2.56 x 6.73 in (118 x 65 x 171 mm)

Product Weight

0.399 lb (0.181 kg)

Packaging Weight

0.624 lb (0.283 kg)

Ports And Connections

2 sockets

Line, neutral, ground wire lead

Buttons

2 outlet on/off control buttons

Leds

1 system indicator (red, amber, green, white)

2 socket on/off indicators (white)

Installation Requirements

Standard outlet wall box (at least 2 inches deep)

Neutral wire required

General
General Features

- ETL certified Tamper Resistant Outlets with fire retardant housing

- Easy install with on-app step-by-step instructions

- Individually controlled sockets

- No hub required

- Works with Alexa, Google Assistant and more


Mobile App Features

- On-app installation guide

- Control from anywhere

- Individual control

- Set Schedules, Timers and Scenes

- Away mode

- Group control

- Widgets quick control

Communication Security

Utilizes HTTPS with SSL/TLS technology

What’s In The Box

1 Smart Power Outlet

1 wall plate

3 wire nuts

1 quick start guide (includes wire label sheet)

Certification

ETL, FCC, IC

Operating Temperature

32°F~104°F (0ºC~40ºC)

Operating Humidity

10%~90%RH, non-condensing

Environment

Indoors only

Warranty

2-year limited warranty (US only)

Working Status
Input

125V~, 60Hz, 15A Max

Output

15A maximum load in total

Power Rating

1875W MAX in total

Kasa Smart Wi-Fi Power Outlet, 2-Sockets-gallery image

What's Included

  • (1) Smart Power Outlet
  • (1) Wall Plate
  • (3) Wire Nuts
  • (1) Quick Start Guide
