Answer The Door From Anywhere, Anytime

Kasa Smart Doorbell  |  KD110

Kasa Smart Doorbell

Always Know Who’s At The Door | KD110

Answer your door from anywhere with your phone.

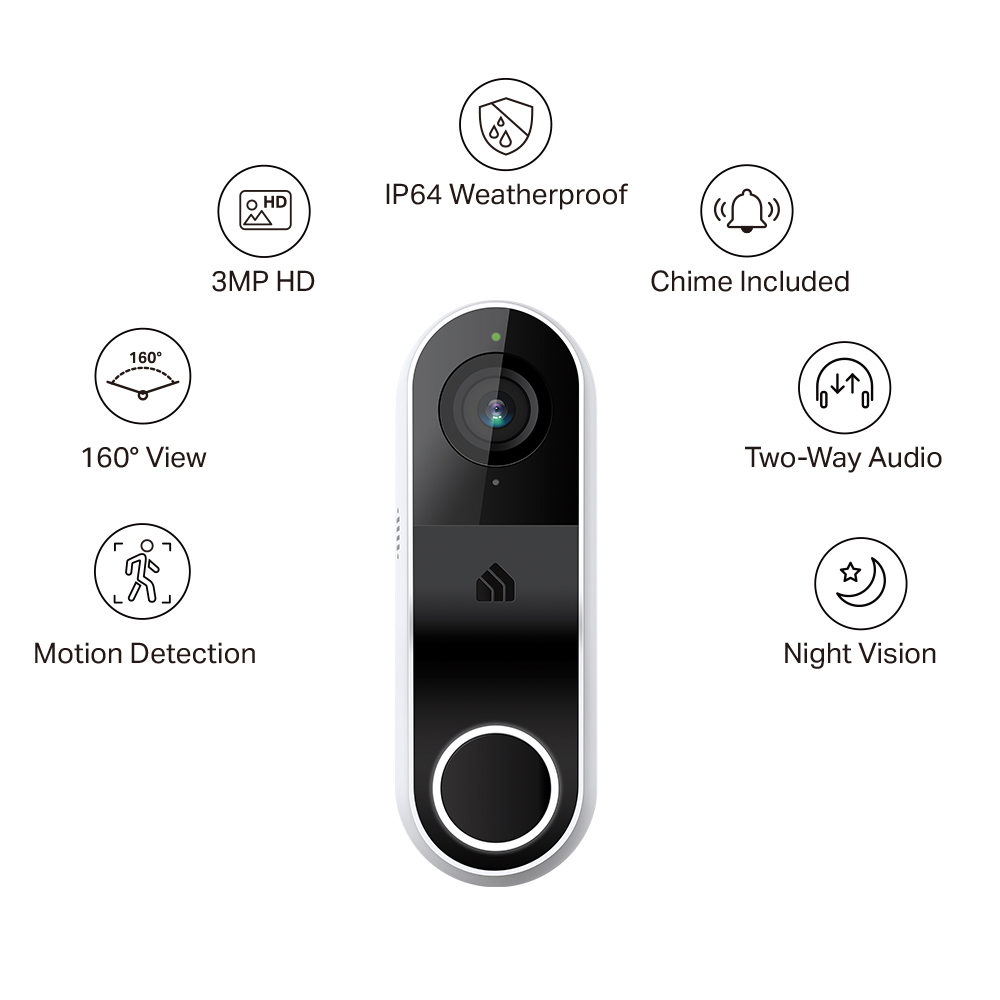

Features

  • 3 Mp Hd Video

    Sharp and clear 3 MP high resolution offers greater detail and colors, even when you zoom in.

  • Live View With Two-way Talk

    Watch live video and carry on a conversation from anywhere with your phone or other supported device.

  • Notifications That Matter

    Get instant push notifications when someone is detected in your custom activity zones or when the doorbell button is pressed.

  • All-weather All-star

    IP64 certified weatherproofing ensures your doorbell stays protected against rain and dust.

  • Local And Cloud Storage

    Save your footage continuously on a microSD card or subscribe to a Kasa Care Plan to store video clips to the cloud.

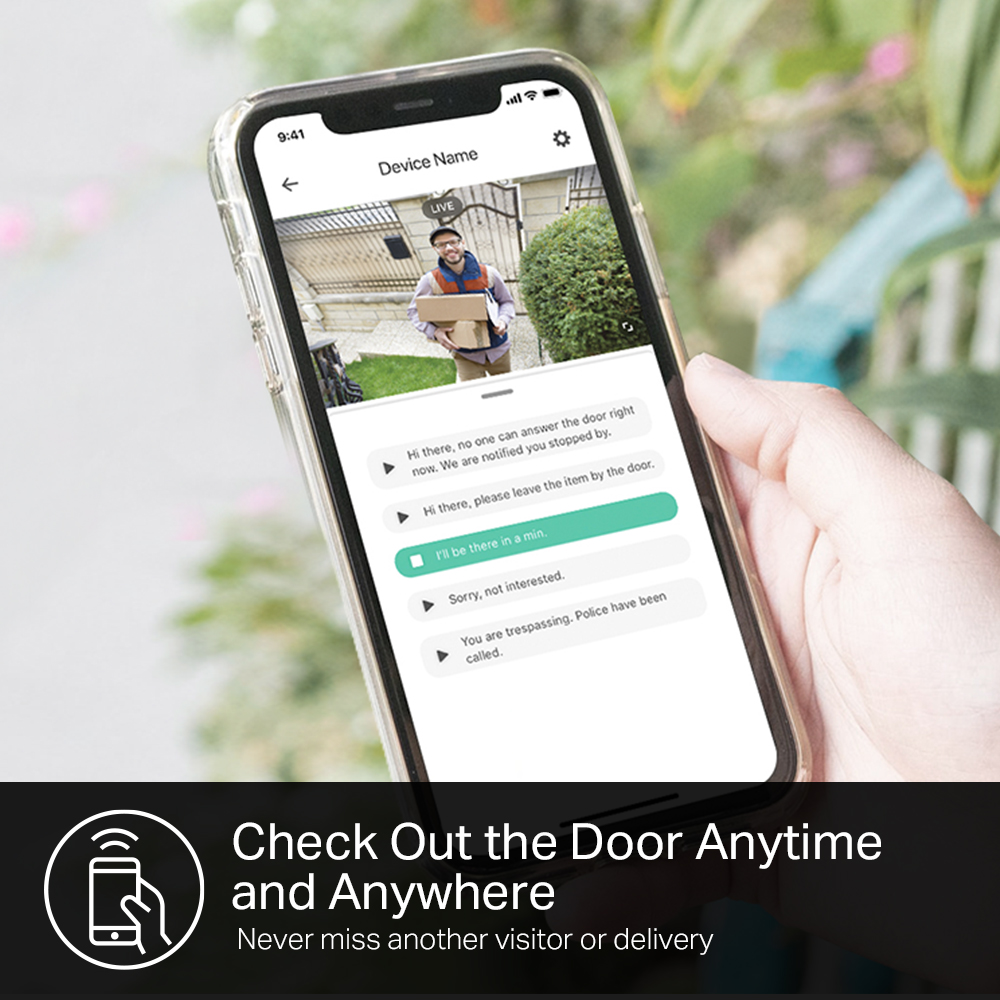

Anytime and anywhere, check out the door

Keep an eye out for deliveries, visitors, or possible intruders at your door with the crisp and sharp 3MP HD video

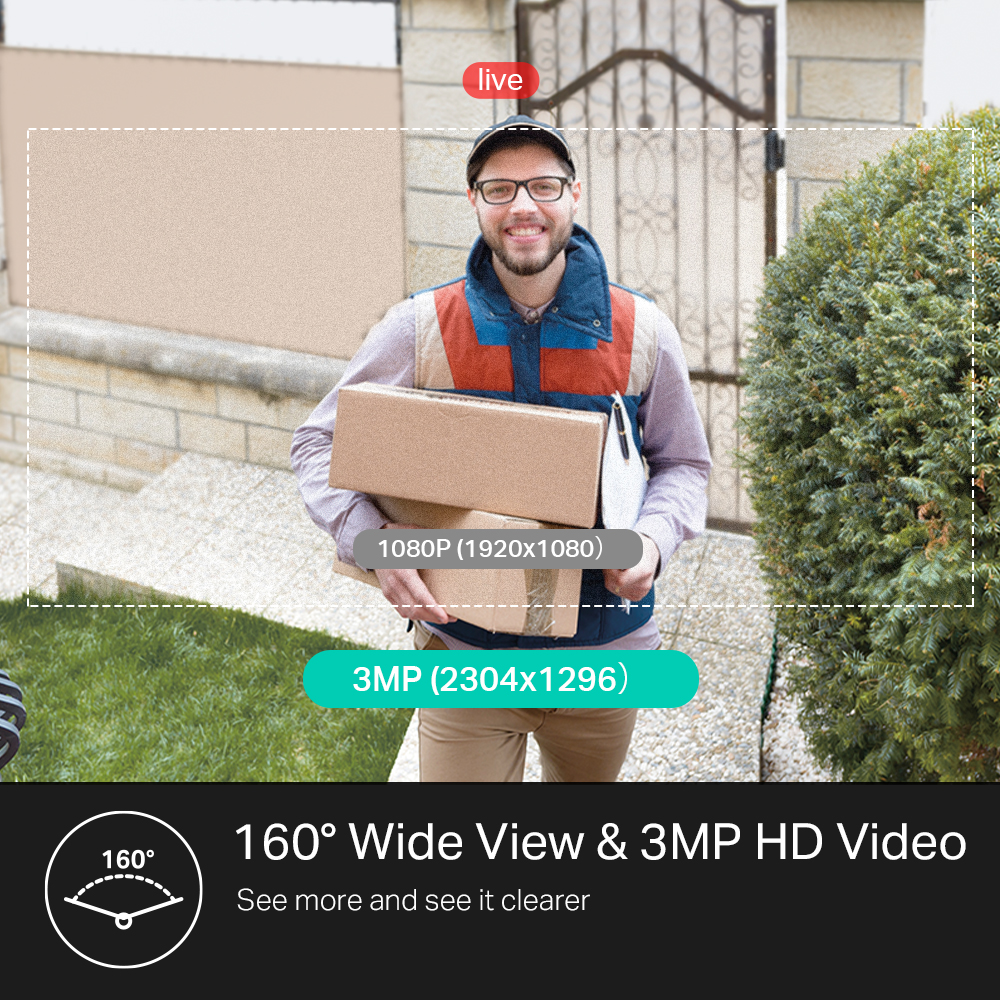

Higher resolution, wider view

Take advantage of the larger format and sharper pixel quality. Captures videos in the resolution of 2304x1296 (3 megapixels) with a broader scope.

Two-way Talk

With built-in microphone and speaker, carry on a conversation from anywhere with your phone or other supported device.

Real-Time Detection and Notification

Notify you when people or motion is detected. Then you can see what's happening immediately with the streaming live view via your phone, or Alexa or Google supported displays.

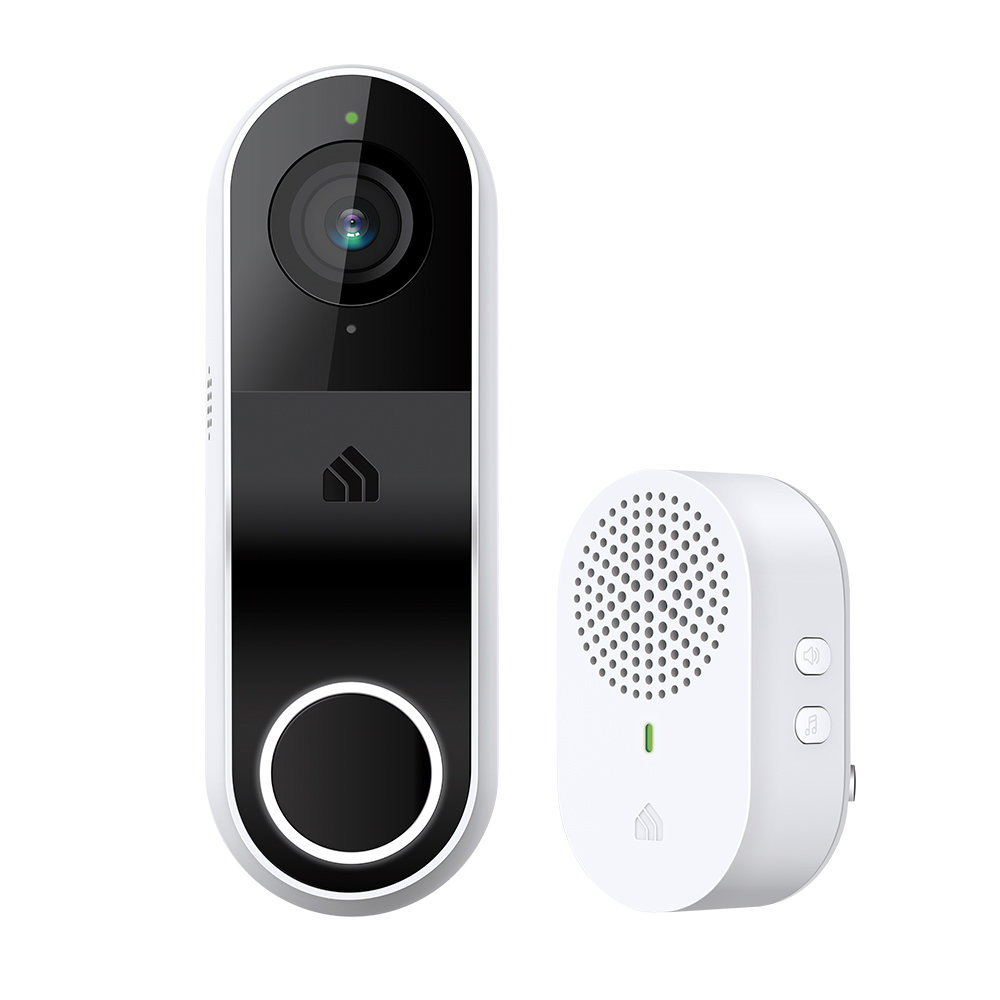

Indoor Chime Included

Choose from a variety of ringtones to find the perfect chime for you, get noticed immediately when you're at home.

Night Vision

The improved image sensors and high-quality contrast means that you won't miss a single detail, day or night.

Record the Whole Thing

Start recording 3-5 seconds before motion alerts triggered to give you the whole image. Subscribe to Kasa Care, store and access recorded clips in the cloud.

IP64 Weatherproof

IP64 certified weatherproofing ensures your doorbell stays protected against rain and dust.

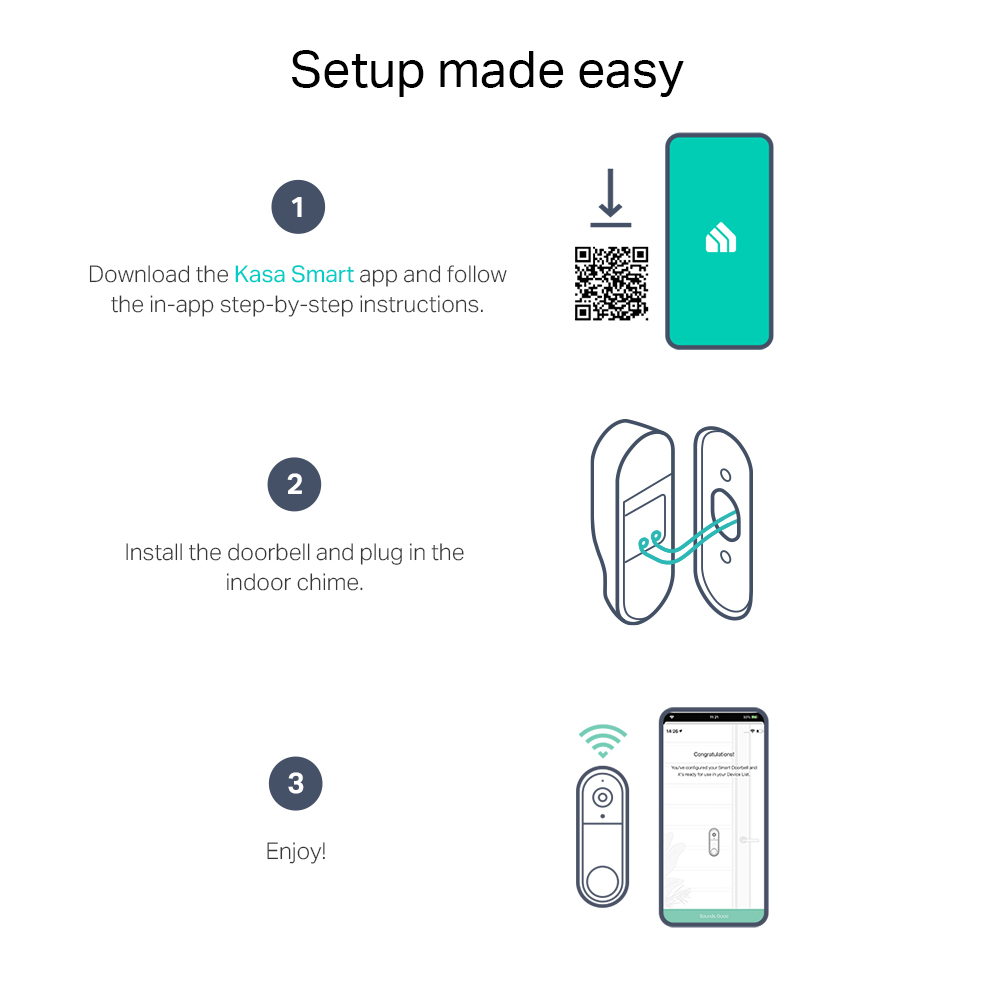

Quick and Easy Setup

Follow the step-by-step in-app instructions to be up and running with your new doorbell.

Technical Specifications +

Hardware
Doorbell Dimensions (w x D x H)

1.78 x 1.08 x 5.12 in. (45 x 27.5 x 130 mm)

Chime Dimensions (w x D x H)

1.71 x 1.85 x 2.87 in. (43.5 x 46.9 x 73 mm)

Doorbell
Image Sensor

1/2.8’’

Resolution

3 MP HD (2304 × 1296 pixels)

Night Vison

850 nm IR LED up to 15 ft

Lens

F/NO: 2.1; Focal Length: 2.1 mm

Viewing Angle

Diagonal FOV = 160°

Storage

Supports Micro SD card, up to 256 GB (microSD card not included.) Version 1 only supports 128 GB.

Audio
Doorbell Audio Communication

2-way audio

Doorbell Audio Input & Output

Built-in microphone and speaker

Chime Audio Output

8 Ringtones and Built-in speaker

Video
Video Compression

H.264

Frame Rate

15 fps

Video Streaming

3 MP HD (2304 × 1296 pixels)

Audio Compression

G.711

Network
Wireless Rate

11Mbps (802.11b) 54Mbps (802.11g) 72.2Mbps (802.11n)

Frequency

2.4 GHz

Wireless Security

WEP, WPA/WPA2-PSK

Security

128 bit AES encryption with SSL/TLS

Requirements
Existing Doorbell Wires

Yes

Transformer (not Included)

16V AC ~ 24V AC, 10 VA Minimum, 50/60Hz

Environment
Operating Temperature

-20°C~45°C (-4°F~113°F)

Storage Temperature

-20°C~70°C (-4°F~158°F)

Operating Humidity

10%~90%RH non-condensing

Storage Humidity

5%~90%RH non-condensing

$component.cover().desktop().title()

What's Included

  • 1 × Doorbell
  • 1 × Chime
  • 1 × Positioning Card
  • 1 × Mounting Bracket
  • 1 × 15° Mounting Wedge
  • 2 × Extension Wires
  • 2 × Wire Nuts
  • 2 × Jumpers for Existing Chime
  • 2 × Screws and Anchors
  • 1 × Quick Start Guide
